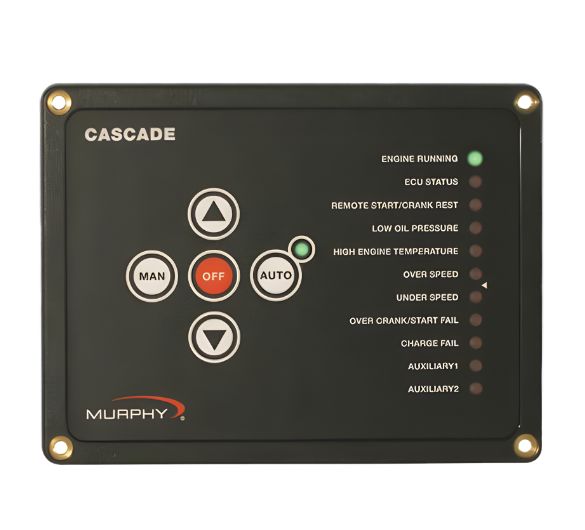

Key Features of the Cascade Controller

• Automatic start/stop sequencing: Provides consistent, reliable start and stop behavior, reducing manual operation and improving equipment safety.
• Wide engine compatibility: Works with mechanical engines using magnetic pickup or AC frequency signals, and with electronic engines through J1939 CAN communication.
• Rugged field-ready design: Encapsulated housing and sealed gasket maintain NEMA4 / IP65 protection when mounted correctly, ideal for dusty, wet and high-vibration environments.
• Dedicated and configurable I/O: Includes built-in inputs for common engine alerts and additional auxiliary inputs/outputs for custom control logic.
• Adjustable crank settings: User-selectable crank attempts, rest times and shutdown delays allow fine tuning based on engine type and site conditions.
• Accurate speed sensing: Supports RPM detection through magnetic pickup, AC frequency input or ECU-based CAN signals.
• Low power consumption: Efficient sleep modes support battery-powered and remote installations where energy saving is critical.
• Supports CAN-based monitoring: Reads engine data directly from J1939 engines, reducing wiring complexity and improving system accuracy.

Applications

• Pump systems: Automates pump activation for water, irrigation, dewatering and industrial fluid transfer applications.
• Generator sets: Ideal for portable units, standby gensets and rental equipment needing stable automatic start/stop cycles.
• Compressors: Supports repeated start/stop cycles in air and gas compressors while monitoring critical safety parameters.
• Engine-driven power units: Suitable for construction, agriculture, drilling and hydraulic power packs requiring dependable engine control.
• Marine auxiliary equipment: Works reliably on marine pumps, onboard utility engines and vibration-heavy environments.
• General industrial machinery: Fits any engine-driven machine needing simple automated control without complex PLC integration.

Technical Specifications

Category	Details
Power Input	9–35 VDC operating range with short-duration blackout tolerance.
Power Consumption	Sleep (Manual): ~1 mA   |   Sleep (Automatic): ~4 mA Running (Manual): ~20 mA   |   Running (Automatic): ~24 mA
Operating Temperature	−40 °C to +85 °C (−40 °F to 185 °F)
Humidity Rating	0–100% non-condensing
Ingress Protection	NEMA4 / IP65 when panel-mounted using the supplied sealing gasket.
Housing Material	UV-stabilized polycarbonate with epoxy encapsulation.
Vibration Resistance	Rated up to 6G for industrial and mobile equipment environments.
Impact Resistance	Rated up to 10G for heavy-duty applications.
Digital Inputs	Low oil pressure, high engine temperature, remote start, charge/alternator fail, plus two configurable auxiliary inputs.
Outputs	7 total outputs: 3 dedicated for crank, fuel/ECU and alternator excitation, plus 4 configurable auxiliary outputs (1A DC protected).
Crank Attempt Settings	Selectable: 3, 5, 10 attempts or continuous cranking.
Crank Rest Time	Adjustable 5–60 seconds between attempts.
Shutdown Lockout Delay	Adjustable 5–30 seconds.
Crank Disconnect / Speed	Field programmable up to 0–9999 RPM (supports 16–60 Hz AC input).
Overspeed / Underspeed	Configurable from ±5% to ±50% of nominal engine speed.
Speed Sensing	Magnetic pickup (5–120 VAC RMS / 0–10 kHz), AC frequency input (30–600 VAC RMS / 16–80 Hz), or RPM via J1939 CAN.
Communication Interface	SAE J1939 CAN suppor t with optional MODBUS output for analog gauges.
Shipping Weight	Approximately 1 lb (453 g)
Shipping Dimensions	130 × 100 × 41 mm (approx. 5.1 × 6.7 × 1.6 inches)

Why Choose Rajkot Marine L.L.C

As an authorized distributor of Enovation Controls in the UAE & GCC Region, Rajkot Marine L.L.C delivers genuine PowerView® products with expert technical support. Our team ensures seamless integration for marine, industrial, and oilfield applications — helping clients achieve consistent performance and reliability.

Authorized Distributor

We provide genuine Enovation Controls products backed by manufacturer warranties and support.

Technical Expertise

Our engineers assist with complete system configuration, installation, and troubleshooting.

Regional Presence

Serving UAE & GCC with fast delivery, regional service, and technical guidance.

Reliable Solutions

All solutions are designed to withstand demanding marine and industrial environments.
