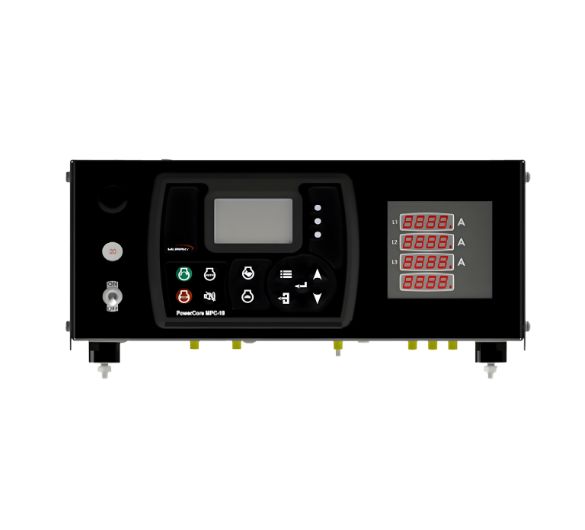

MurphyLink MGC1000 manual/auto start genset panel with MPC-10 controller interface

Generator Control Panel

Manual / Auto Start Control | J1939 CAN Compatible | Mechanical & Electronic Engines

Marine · Industrial · Oil & Gas

MGC1000 Generator Control Panel for Reliable Genset Operation

The MGC1000 generator control panel is a compact and rugged solution designed to simplify engine monitoring, protect critical equipment, and streamline manual or automatic start operations. Built around the versatile MPC-10 controller, it offers dependable performance with flexible I/O, CAN-based communication, and a wide operating temperature range—making it suitable for both mechanical and electronically governed engines across industrial and power-generation applications.

8–32VDC Operating Voltage

J1939 CAN Protocol

-40° to 85°C Operating Temp

8 Outputs

Key Features Section

MPC-10 based engine controller – The panel is powered by the MPC-10, a reliable controller that delivers both manual and automatic start functions. Its intuitive interface allows operators to adjust key parameters directly from the front panel without needing a computer.
Supports mechanical and electronic engines – Designed for broad compatibility, the MGC1000 works with J1939 CAN engines and analog-sensor mechanical engines, allowing seamless monitoring of temperature, oil pressure, speed and critical shutdown events.
Flexible input and output configuration – Equipped with a mix of configurable digital inputs, analog inputs, relay outputs, and frequency inputs, the panel enables essential engine control tasks such as start/stop, fuel solenoid operation, glow plug control, alternator excite output, and auxiliary alarms.
Rugged and engine-mountable design – The metal enclosure and Deutsch connectors provide long-term durability in harsh industrial and marine environments. Its compact form factor allows direct mounting on the engine or inside the equipment enclosure.
Wide operating temperature range – Built to handle extreme conditions, the MGC1000 performs reliably from –40°C to +85°C, making it suitable for power generation systems used in demanding climates.
Advanced communication capability – With built-in J1939 and Modbus RS485 support, the panel can integrate with modern engines, remote monitoring systems, telematics platforms, and SCADA networks for enhanced diagnostics and data visibility.

Applications

Standby and prime-power generator sets – Ideal for small and medium-sized gensets, the panel provides essential monitoring, protection, and reliable start/stop logic required for both standby power and continuous-duty applications.
Industrial and construction equipment – Suitable for compressors, pumps, and engine-driven machinery used on construction sites or in industrial operations, where robust control and dependable safety shutdowns are critical.
Mechanical and Tier-4 electronic engines – The panel’s flexible I/O and CAN connectivity allow easy integration with older mechanical engines as well as modern engines that follow strict emission and control standards.
Remote and temporary power installations – Its rugged construction and data communication capabilities make it an excellent choice for rental power systems, field operations, or remote sites requiring stable engine monitoring and quick deployment.
Marine and offshore auxiliary engines – Engineered with reliable connectors and vibration-resistant design, the MGC1000 is suitable for marine auxiliary engines, deck equipment, and offshore support machinery.

Technical Specifications

Advanced generator control panel powered by the MPC-10 controller, delivering reliable engine monitoring, flexible I/O, and seamless industrial communication.

Category	Details
Controller	MPC-10 general-purpose manual/auto start controller
Operating Voltage	8–32 VDC with reverse polarity and load dump protection
Current Consumption	117 mA @ 12 VDC (power on, stopped mode) 52 mA @ 12 VDC (standby mode)
Inputs	2 × Digital inputs (configurable) 2 × Analog inputs (4–20 mA, 0–5V, resistive) 1 × Frequency input (30 Hz – 10 kHz) supporting magnetic pickup or alternator
Outputs	2 × Relay outputs (10A each) 2 × Low-side outputs (1A) 2 × High-side outputs (1A) 1 × Dedicated alternator excite output
Communications	CAN J1939 RS485 Modbus RTU USB 2.0B (for programming)
Operating Temperature	-40°C to +85°C (-40°F to 185°F)
Enclosure	Sheet metal construction with Deutsch HDP26-24-21SE connector
Dimensions	360 × 155 × 271 mm (W × H × D)
Mounting	Engine-mountable or installable on equipment enclosure

How the MGC1000 Generator Control Panel Works

The MGC1000 panel uses the MPC-10 controller to manage the entire engine start, run, and shutdown sequence. When the operator selects manual or auto mode, the controller begins monitoring engine conditions in real time using temperature, pressure, and speed inputs.

During startup, the controller energizes outputs such as the fuel solenoid, starter, and glow plug (for applicable engines). Once the engine reaches a stable running speed, the panel continues to supervise operating parameters and protects the engine by triggering alarms or shutdowns when unsafe conditions are detected.

The MGC1000 communicates with modern engines through J1939 CAN, enabling access to electronic engine data. For mechanical engines, it reads analog sensors to maintain the same level of protection and monitoring. Its Modbus connectivity also allows integration with remote monitoring systems and SCADA platforms.

All essential functions—including configuration, parameter adjustment, and fault reset—can be performed directly from the panel without external tools, making the MGC1000 a highly user-friendly and versatile generator control solution.

Technical FAQ

Common Questions Answered

Can't find your answer? Contact our engineers →

The MGC1000 is designed to control and protect generator sets. It manages start/stop sequences, monitors engine health, and provides safety shutdowns for both mechanical and electronic engines.

Yes. The panel supports analog sensors for temperature, pressure, and speed, making it fully compatible with mechanical engines in addition to modern J1939 CAN engines.

Absolutely. The MPC-10 controller inside the MGC1000 enables both manual and automatic start modes, making it suited for standby and prime-power applications.

The MGC1000 uses J1939 CAN for electronically governed engines and RS485 Modbus for integration with remote monitoring or SCADA systems. USB is available for programming.

Yes. The rugged sheet-metal enclosure and industrial connectors allow the MGC1000 to be mounted on the engine or within a protective cabinet.

The panel provides overspeed shutdown, low oil pressure shutdown, high engine temperature shutdown, charge-fail detection, and configurable auxiliary alarms.

It is widely used in power generation, industrial equipment, construction machinery, marine auxiliary engines, and remote power systems where reliable engine protection is required.
