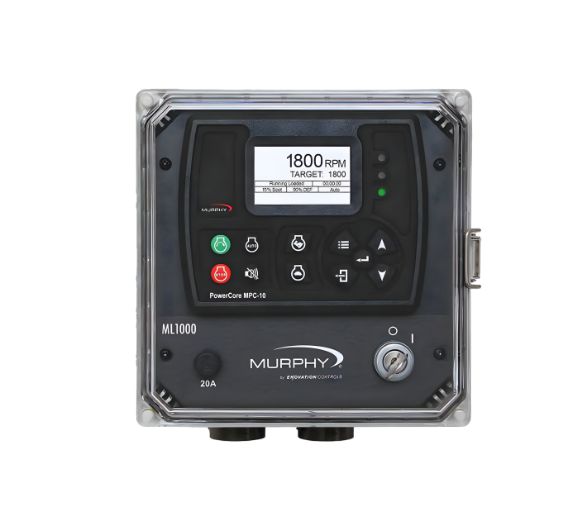

The ML1000-4X Engine Control Panel is designed to deliver dependable performance in harsh industrial and rental environments. Built with a rugged NEMA 4X enclosure and equipped with flexible inputs and outputs, it provides reliable engine monitoring, protection, and control for a wide range of equipment. Its user-friendly interface and versatile configuration options make it a trusted choice for pumps, generators, and heavy-duty machinery operating in demanding conditions.
Rugged NEMA 4X-rated engine control panel designed for harsh environments, featuring the MPC-10 controller with advanced I/O, reliable communication, and robust protection.
| Category | Details |
|---|---|
| Operating Voltage | 8–32 VDC with built-in reverse polarity and load-dump protection |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Current Consumption | 117 mA (power on), 52 mA (standby) at 12 VDC |
| Enclosure Rating | NEMA 4X polycarbonate enclosure with clear protective door |
| Controller | MPC-10 manual/auto start and throttling controller |
| Communications | CAN J1939, RS485 (Modbus RTU), USB 2.0 Type-B |
| Outputs |
3 × SPDT relays (10A) 2 × low-side outputs (1A) 2 × high-side outputs (1A) 1 × alternator excite output |
| Inputs |
5 × digital inputs 3 × analog inputs (4–20 mA / 0–5V / resistive) 1 × frequency input (30 Hz – 10 kHz) |
| Dimensions (W × H × D) | 259 × 236 × 155 mm |
| Supported Interface Languages | English, Spanish, German, French, Italian |
The ML1000-4X operates as a complete engine monitoring and control system using the MPC-10 controller. Once connected to the engine harness, the controller continuously reads key signals such as temperature, pressure, RPM, and fluid levels. Based on these inputs, it automatically manages functions like starting, stopping, and adjusting engine speed.
The controller follows a built-in sequence of machine states, ensuring safe startup and shutdown procedures. If unsafe conditions are detected, the panel activates alarms or initiates protective shutdowns to prevent engine damage. Operators can easily modify settings from the front panel or use an optional PC configuration tool for advanced adjustments.
Yes. The NEMA 4X enclosure provides strong protection against rain, dust, and debris, making it reliable for outdoor and rugged industrial applications.
Absolutely. The panel supports analog inputs for mechanical engines and CAN J1939 communication for modern electronic engines.
No. Most settings can be adjusted directly on the panel. However, a free PC tool is available for deeper customization when required.
The ML1000-4X is widely used on pumps, generators, compressors, hydraulic power units, rental machinery, and engine-driven industrial equipment.
Yes. The RS485 port enables Modbus RTU communication, making it compatible with remote monitoring and SCADA systems.
