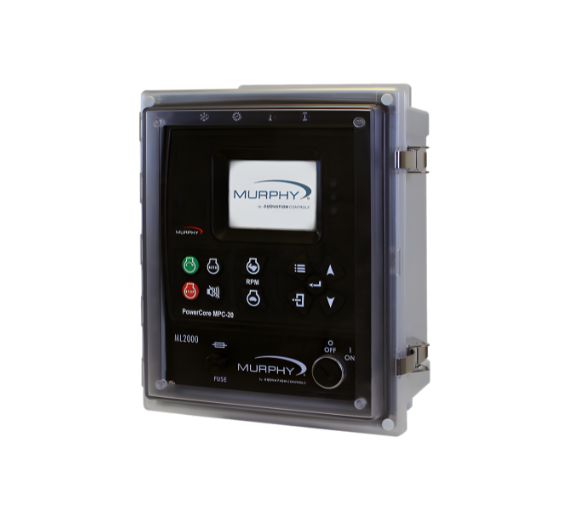

ML2000 Engine Control Panel for Reliable Engine Monitoring and Control

The ML2000 Engine Control Panel is designed to deliver dependable monitoring, protection, and automated control for a wide range of industrial, marine, and genset engines. Built with a rugged enclosure and a versatile I/O architecture, the ML2000 provides accurate engine data, smooth start–stop functions, and flexible configuration options to suit demanding applications. Its intuitive display, wide operating voltage range, and seamless integration with modern engine systems make it a trusted solution for equipment builders and operators seeking long-term performance.

8–32VDC Operating Voltage

146W Max Power

-40° to 85°C Operating Temp

Modbus RS485 Comm

Key Features Section

Advanced Engine Monitoring – The ML2000 Engine Control Panel continuously tracks vital engine parameters such as RPM, oil pressure, coolant temperature, and battery voltage, ensuring safe operation in demanding environments.
Flexible I/O Configuration – With a rich combination of analog, digital, frequency inputs and relay outputs, the panel can be customized to meet the exact control needs of marine engines, gensets, and industrial machines.
User-Configurable Control Logic – Operators can easily adjust operating thresholds, alarm behavior, start/stop sequences, and safety interlocks using simple configuration tools, enabling rapid integration into new or existing systems.
Rugged Construction for Harsh Conditions – Available in metal and NEMA 4X polycarbonate enclosures, the ML2000 is designed to withstand moisture, vibration, temperature extremes, and offshore environments.
Intuitive Display and Keypad – The bright, transflective LCD ensures clear visibility in daylight, while the tactile keypad allows operators to navigate menus, check engine status, and acknowledge warnings efficiently.
Wide Operating Voltage Range – Supporting 8–32V DC, the ML2000 Engine Control Panel can be used across various engine platforms without the need for voltage converters or external regulators.
Seamless Integration with Modern ECUs – With SAE J1939 CAN communication and RS-485 Modbus support, the panel connects easily with electronically governed engines and external monitoring systems.
Fast Setup and Easy Maintenance – Preconfigured default settings allow quick deployment, while USB-based configuration loading helps technicians duplicate settings across multiple units effortlessly.

Applications

Marine Engines & Vessels – Ideal for workboats, fishing vessels, small crafts, and auxiliary marine engines where reliable monitoring and control are essential for safe operation.
Diesel & Gas Gensets – Suitable for prime, standby, and rental gensets requiring automated start/stop, load monitoring, and protective shutdown features.
Oil & Gas Equipment – Used for pump engines, compressors, and skids operating in remote or rugged locations where durability and precise control are critical.
Industrial Engines – Perfect for engines used in manufacturing, material handling, drilling rigs, and heavy-duty industrial machinery.
Custom OEM Engine Packages – Provides equipment builders with a versatile, configurable panel that can be integrated into custom machines with minimal engineering effort.
Construction & Heavy Equipment – Supports excavators, compactors, borewell rigs, and power units requiring dependable engine safety and automated control functions.

Technical Specifications

Advanced engine control panel designed for high-performance applications, offering extensive I/O capability, robust communication protocols, and reliable operation in harsh industrial and marine environments.

Category	Details
Operating Voltage	8–32 VDC wide-range input
Operating Temperature	-40°C to +85°C suitable for harsh engine rooms
Communication Protocols	SAE J1939 CAN communication, RS-485 Modbus
Inputs	15 total: 8 analog (resistive, 0–5 V, 4–20 mA) 6 digital (battery or ground) 1 frequency input (2 Hz – 10 kHz)
Outputs	13 total: 2 low-side (1A max) 2 high-side (2A max) 2 × 5V regulated outputs 1 analog output (0–5 V) 6 Form-C relays (10A max)
Display	3.8-inch transflective LCD for sunlight readability
Enclosure Options	Powder-coated steel, NEMA 4X polycarbonate, or flat-panel version
Connector Type	21-pin & 31-pin Deutsch HDP26 connectors
Weight	ML2000 Metal Panel: ~5.9 kg ML2000-4X Polycarbonate: ~4.99 kg ML2000-FP Flat Panel: ~3.17 kg

How the ML2000 Engine Control Panel Works

The ML2000 Engine Control Panel operates as an integrated control and monitoring system that manages essential engine functions. Once connected to the engine through its Deutsch harnessing and communication ports, the panel receives live data from sensors and electronic control units.

The MPC-20 controller inside the panel processes this information and triggers the appropriate actions — such as starting the engine, shutting it down during unsafe conditions, controlling throttle outputs, activating relays, or raising alarms. Operators can customize thresholds, automation logic, and safety parameters through the panel interface or configuration software, making the ML2000 flexible for multiple engine types.

Whether it's used in marine vessels, gensets, or industrial equipment, the ML2000 ensures smooth operation by combining real-time monitoring, event handling, and automated protection in a compact, rugged package.

Technical FAQ

Common Questions Answered

Can't find your answer? Contact our engineers →

The ML2000 is compatible with both mechanically governed and electronically controlled engines. Its J1939 CAN support allows it to communicate seamlessly with modern ECUs, making it suitable for marine engines, gensets, and industrial diesel/gas engines.

Yes. The panel is available in rugged steel and NEMA 4X polycarbonate enclosures, designed to withstand temperature extremes, moisture, vibration, and offshore conditions.

Absolutely. The ML2000 allows users to configure alarm thresholds, start/stop sequences, safety interlocks, and input/output mapping through its front interface or a PC configuration tool.

Yes. Using its RS-485 Modbus and J1939 CAN capabilities, the panel can be integrated with external monitoring systems, SCADA interfaces, or remote telemetry devices.

Installation is straightforward thanks to its standardized Deutsch connectors and flexible harness options. The flat-panel version can also be integrated into existing dashboards or engine enclosures.
