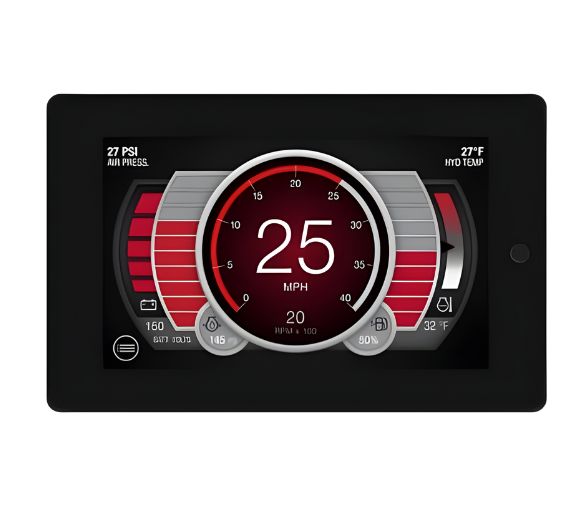

PowerView^® P70 Display – The Next-Generation Rugged 7-Inch HMI Application Controller

The PowerView® P70 Display is Enovation Controls' newest premium rugged display. The P70 is engineered as a high-performance, all-weather HMI solution that sets the new standard for control systems in heavy-duty mobile equipment. It features a modern glass-front design and a comprehensive input/output architecture, specifically built for OEMs and integrators requiring advanced connectivity and supreme durability. Programmed exclusively via PowerVision Configuration Studio® (v7.0 or newer), the P70 utilizes a dual-core processor and the QNX Realtime Operating System (RTOS) to host complex, mission-critical applications, ensuring deterministic system control and real-time data analysis.

8GB Flash Memory

512MB DDR3-SDRAM

32VDC Max Voltage

3.9Grms Vibration

Key Features Section

1000-Nit Brightness (1000 cd/m²) and Anti-Glare Surface for Industry-Leading Sunlight Readability.
Renesas RZ/G1e Dual-Core Processor utilizing the QNX Realtime OS for deterministic application control.
Certified IP67 and IP69K Protection for complete resistance to high-pressure, high-temperature washdowns.
Dual CAN 2.0B Interfaces and robust I/O (4 Digital/3 Analog Inputs, 5 Outputs) for seamless vehicle network integration.
Projected Capacitive (PCAP) Touch Panel optimized for seamless operation while wearing heavy work gloves.

Applications

Precision Farming: Leverage Dual CAN, optional GPS, and 1000-nit screen for advanced implements and navigation systems.
Construction & Mining: Ensure uptime with IP69K protection and a wide -40°C to +70°C operating temperature range.
Specialized Vehicles: Advanced variant supports remote diagnostics, streaming audio, and integration via Wi-Fi and Bluetooth 5.0.

Technical Specifications

Engineered for precision. Built for the harshest environments on Earth.

Category	Details
Display	7-inch (178 mm), 800 x 480 (WVGA) resolution, 1000 cd/m² brightness, Typ. 1000:1 contrast, PCAP touch with Glove Touch, Anti-glare
Computing	Renesas RZ/G1e Arm Cortex-A7 Dual-Core @ 1.0 GHz (32-bit), QNX Realtime OS, 8 GB Flash / 512 MB DDR3-SDRAM
Communication	(2) CAN 2.0B (J1939, ISO 11898-2); I/O: (4) Digital Inputs, (3) Analog Inputs, (1) Analog Out, (5) Digital Outputs (High/Low-Side)
Environmental	IP67 & IP69K rated, 6–36 VDC, Operating Temp: -40°C to +70°C, withstands 7.86 Grms Vibration / $\pm 50G$ Shock 1
Advanced	Optional Wi-Fi 2.4Ghz, Bluetooth 5.0, Internal GPS; (2) NTSC/PAL Video Inputs

Why Choose Rajkot Marine L.L.C

As an authorized distributor of Enovation Controls in the UAE & GCC Region, Rajkot Marine L.L.C delivers genuine PowerView® products with expert technical support. Our team ensures seamless integration for marine, industrial, and oilfield applications — helping clients achieve consistent performance and reliability.

Authorized Distributor

We provide genuine Enovation Controls products backed by manufacturer warranties and support.

Technical Expertise

Our engineers assist with complete system configuration, installation, and troubleshooting.

Regional Presence

Serving UAE & GCC with fast delivery, regional service, and technical guidance.

Reliable Solutions

All solutions are designed to withstand demanding marine and industrial environments.
