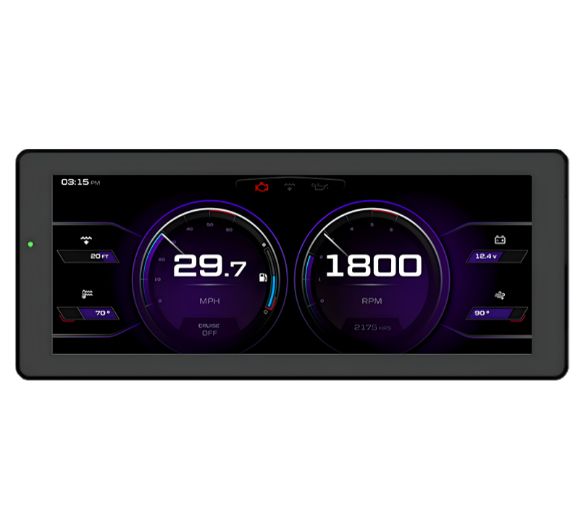

PowerView^® U150 Rugged Industrial Display with Sunlight Readable Touchscreen

PowerView® U150 Display is a 15-inch rugged industrial display engineered for demanding marine, oil & gas, and heavy equipment environments. With 1000 nits brightness, a bonded LCD for glare-free visibility, IP67-rated protection, and glove-operable touchscreen control, it ensures reliable performance in sunlight, vibration, and extreme weather. Ideal for outdoor and vehicle-mounted applications requiring precision and durability.

16 GB Flash Memory

1 gb RAM

1000 cd/m² Brightness

36VDC Max Voltage

Key Features Section

15-Inch Sunlight Readable Screen: A high-brightness 1000 nits bonded LCD provides crystal-clear visibility even under direct sunlight, reducing glare and reflection for outdoor use.
Rugged IP67-Rated Protection: Fully sealed against dust, moisture, and vibration, ensuring dependable operation in offshore platforms, engine rooms, and field-mounted panels.
High-Performance Processing: Powered by a Renesas® R-Car M2 dual-core processor for fast graphics rendering and responsive touchscreen performance.
Glove-Operable Touchscreen: Projected capacitive (PCAP) touch technology allows precise control while wearing protective or work gloves.
Enhanced Connectivity: Supports dual CAN J1939, Bluetooth 5.0, Wi-Fi, Ethernet, USB, and RS-485 for seamless integration with industrial networks and marine control systems.
Audio & Video Capabilities: Includes A2B audio, AM/FM/DAB radio, and analog video inputs for versatile multimedia and system feedback applications.
Wide Temperature Range: Operates reliably from –30 °C to +70 °C, maintaining stable performance in extreme heat, cold, or humidity.

Applications

Marine Vessels & Offshore Equipment: Perfect for bridge consoles, propulsion systems, and engine monitoring panels exposed to salt air and constant vibration.
Oil & Gas Installations: Reliable display for control panels, pump stations, and drilling systems where safety and uptime are critical.
Industrial Automation & Machinery: Serves as a robust operator interface for manufacturing, process control, and heavy equipment dashboards.
Vehicle & Mobile Equipment: Suited for construction vehicles, mining trucks, and service fleets requiring sunlight-readable and shock-resistant displays.
Defense & Utility Applications: Performs consistently in mission-critical environments, providing real-time data visualization and control feedback.

Technical Specifications

Engineered for precision. Built for the harshest environments on Earth.

Category	Details
Display	15-inch LVDS TFT LCD with LED backlight
Resolution	1920 × 720 pixels
Brightness	1000 nits (cd/m²) sunlight readable
Contrast Ratio	1000:1 with bonded anti-glare surface
Touchscreen	Projected capacitive (PCAP) – glove operable
Processor	Renesas® R-Car M2 with Arm® Cortex®-A15 dual-core @ 1.5 GHz
Operating System	QNX® Realtime Operating System
Memory	1 GB RAM, 16 GB eMMC flash storage
Connectivity	2× CAN J1939, 2× USB 2.0, RS-485, Ethernet (100MB M12), Bluetooth 5.0, Wi-Fi 802.11 a/b/g/n
Audio / Video	4× Analog video inputs (NTSC/PAL), A2B audio, AM/FM/DAB radio, 2× analog audio line-in
Inputs	5× Digital, 3× Analog (0–5 VDC / 2–20 mA), 1× Frequency input (0.5 Hz–20 kHz)
Outputs	2× Frequency outputs, 1× 500 mA switched low-side output
Operating Voltage	6–36 VDC, reverse polarity protected
Operating Temperature	–30 °C to +70 °C
Environmental Protection	IP67 rated – dustproof and waterproof
Shock / Vibration	±50 G in 3 axes, ISO 15003 certified
EMC / EMI Compliance	SAE J1113, ISO 13766, CE per 2014/30/EU
Dimensions (W × H × D)	411 × 173 × 47 mm
Mounting Options	Panel mount / vehicle mount configurations

Why Choose Rajkot Marine L.L.C

As an authorized distributor of Enovation Controls in the UAE & GCC Region, Rajkot Marine L.L.C delivers genuine PowerView® products with expert technical support. Our team ensures seamless integration for marine, industrial, and oilfield applications — helping clients achieve consistent performance and reliability.
