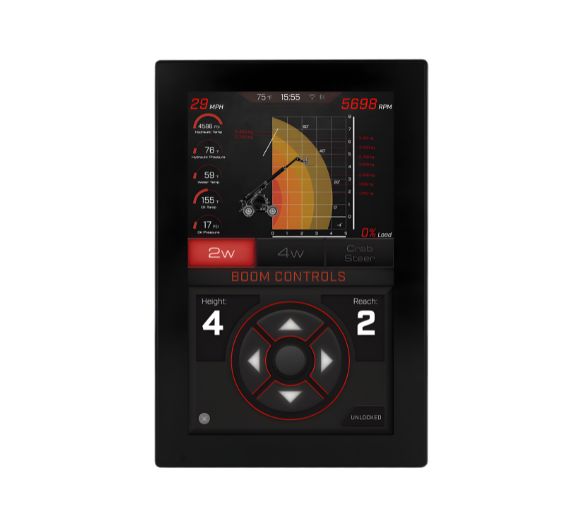

PowerView^® 1100 Display

The PowerView® 1100 Display is a next-generation full-color display engineered for advanced equipment monitoring and control. Designed by Enovation Controls, this rugged 10.6-inch touchscreen integrates vital engine, transmission, and diagnostic data into an intuitive interface — delivering clarity, speed, and reliability in even the toughest environments.

8 GB Flash Memory

1000 cd/m2 Brightness

Dual Core processor

36VDC Max Voltage

Key Features Section

10.6-Inch High-Definition Display: Experience crisp, full-color visuals with a 1280x768 resolution and 1000 cd/m² brightness. The bonded LCD delivers exceptional sunlight readability, ensuring operators can clearly view data even in bright marine or industrial environments.
Powerful Dual-Core Processor: Equipped with a Renesas® R-Car M2 dual-core Arm® Cortex®-A15 processor, the PV1100 offers rapid boot times, smooth graphics, and fluid animation — ideal for complex system visualization.
Rugged and Reliable Design: Built for demanding conditions with IP66 and IP67 protection, the display resists dust, water, vibration, and extreme temperatures from -40°C to +70°C, making it suitable for both onshore and offshore applications.
Glove-Friendly Touchscreen: Its projected capacitive (PCAP) touchscreen is responsive to both bare and gloved hands, enhancing usability and safety for field operators.
Versatile Connectivity: Supports dual CAN 2.0B (J1939 and proprietary), RS-485 (Modbus), USB 2.0, and optional Ethernet, Wi-Fi, and Bluetooth — enabling easy integration with multiple engine and control systems.
Customizable Interface with PowerVision® Studio: Create tailor-made dashboards, animations, and control logic using PowerVision Configuration Studio®. Developers can rapidly prototype, test, and deploy dynamic user experiences.
Flexible Mounting and Orientation: Available in both landscape and portrait configurations to fit varying panel designs and operator preferences.
Advanced Diagnostics and Monitoring: Real-time access to engine, transmission, and system data enhances operational safety and reduces downtime by enabling proactive maintenance decisions.
Energy-Efficient Performance: Operates efficiently across a 6–36 VDC input range with built-in reverse polarity protection, ensuring reliability in variable power environments.

Applications

Marine engine monitoring and control
Oil & Gas generator systems
Industrial equipment diagnostics
Heavy-duty off-highway machinery

Technical Specifications

Engineered for precision. Built for the harshest environments on Earth.

Category	Details
Display	10.6" LVDS TFT LCD, 1280×768 resolution, 1000 cd/m² brightness
Touch Panel	Projected capacitive (PCAP), glove touch supported
Processor	Renesas® R-Car M2 Dual-Core Arm® Cortex®-A15, 1.5 GHz
Memory	8 GB Flash / 512 MB DDR3 SDRAM
Operating System	QNX® Real-Time OS
Connectivity	CAN (2x), RS-485, USB 2.0, Ethernet (optional), Wi-Fi, Bluetooth
Communication	1× CAN (J1939), 1× RS-485 (Modbus), 1× USB 2.0
Inputs	3 Analog, 5 Digital, 1 Frequency Input
Outputs	1 Low-side switched (500 mA), 1 Frequency output
Operating Voltage	6–36 VDC, reverse polarity protected
Environmental	-40°C to +70°C operation, IP66/IP67 protection

Why Choose Rajkot Marine L.L.C

As an authorized distributor of Enovation Controls in the UAE & GCC Region, Rajkot Marine L.L.C delivers genuine PowerView® products with expert technical support. Our team ensures seamless integration for marine, industrial, and oilfield applications — helping clients achieve consistent performance and reliability.
