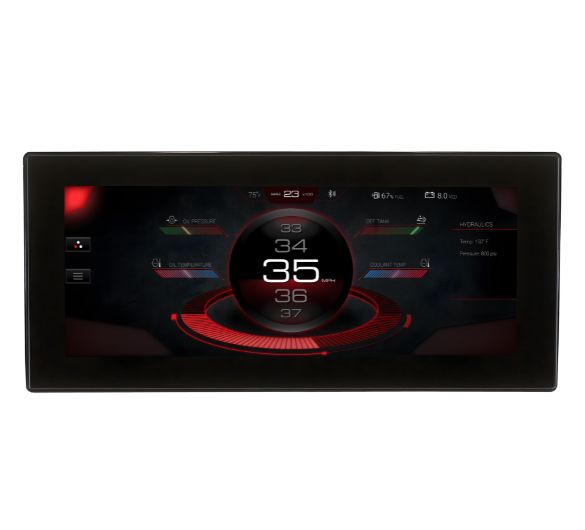

PowerView^® 1200 Rugged Display for Marine, Oil & Gas, and Industrial Applications

The PowerView® 1200 is a 12.3-inch wide-format rugged display designed for demanding environments such as marine vessels, oil & gas engines, and industrial control systems. Built with a high-brightness, sunlight-readable screen and a durable IP67-rated housing, the PowerView® 1200 ensures exceptional visibility, performance, and reliability in extreme outdoor conditions. Ideal for engine monitoring, equipment dashboards, and system diagnostics where clarity and ruggedness matter most.

8 GB Flash Memory

512 MB DDR3-SDRAM

1000 cd/m² Brightness

36VDC Max Voltage

Key Features Section

Ultra-Wide 12.3-Inch Display: The PowerView 1200 features a large 12.3-inch LCD, providing operators a complete view of engine and equipment data on a single screen—ideal for complex marine and industrial dashboards.
Sunlight-Readable Clarity: With a 1000 cd/m² brightness and anti-glare surface, the display remains crystal clear even in direct sunlight, ensuring accurate readings on vessels, rigs, and outdoor installations.
Rugged IP67 Design: Engineered to withstand water, dust, vibration, and shock, the PV1200 performs reliably in harsh offshore and on-site environments.
High-Performance Processing: Powered by a dual-core 1.5 GHz processor with 8 GB flash memory, it delivers fast data updates and smooth graphics performance for real-time system monitoring.
Flexible Connectivity: Dual CAN channels (J1939 and proprietary messaging), RS-485 (Modbus), USB, and optional Ethernet/Wi-Fi/Bluetooth connectivity ensure seamless integration with any industrial or marine system.
Custom Interface with PowerVision Studio: Supports full interface customization, allowing operators to design intuitive layouts, alarms, and visual elements that match their system requirements.

Applications

Marine Engines and Gensets: Used in vessel control panels for monitoring engine speed, temperature, and alarms with sunlight-readable visibility.
Oil & Gas Equipment: Perfect for offshore platforms and on-site engine monitoring, providing rugged reliability in extreme heat, vibration, and humidity.
Industrial Machinery: Integrates into genset control panels, pumps, compressors, and heavy-duty industrial engines for accurate operational data.
Mobile Equipment and Vehicles: Suitable for construction vehicles, cranes, and mining machinery requiring robust and wide-screen instrumentation.
Power Systems and Remote Installations: Ideal for monitoring power plants, generators, and critical infrastructure where system uptime and safety are essential.

Technical Specifications

Engineered for precision. Built for the harshest environments on Earth.

Category	Details
Processor	Renesas® R-Car M2 dual-core 1.5 GHz processor for high-speed performance
Operating System	QNX® real-time operating system ensuring reliability and fast response
Memory	8 GB flash storage and 512 MB DDR3 RAM
Display	12.3-inch LVDS IPS LCD (1280 × 480 resolution), 24-bit color, 1000 cd/m² brightness, 800:1 contrast ratio
Touchscreen	Projected capacitive (PCAP) touch with glove-friendly operation
Surface	Bonded, anti-glare glass surface for improved clarity and strength
Connectivity	Dual CAN 2.0B (J1939 and proprietary), RS-485 (Modbus), USB 2.0 host, Ethernet 10/100 (optional), Wi-Fi and Bluetooth (optional)
Inputs	3 analog (0–5 VDC, 4–20 mA, resistive), 5 digital inputs, 1 frequency input (2Hz–10kHz)
Outputs	1 low-side switch (500 mA), 1 frequency output (2Hz–3kHz)
Operating Voltage	6–36 VDC with reverse polarity protection
Environmental Protection	IP66 and IP67 rated for dust and water resistance (front and back)
Operating Temperature	-40°C to +70°C (-40°F to +158°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Vibration Resistance	3.9 Grms (10–350 Hz) on three axes, tested per ISO 15003
Shock Resistance	±50G on three axes
Video Inputs	Three NTSC/PAL channels (single channel viewable)
Dimensions	345 mm × 155 mm × 36 mm (overall), 294 mm × 111 mm (viewable area)
Compliance	Meets SAE J1113, ISO 13766, CE (2014/30/EU) standards

Why Choose Rajkot Marine L.L.C

As an authorized distributor of Enovation Controls in the UAE & GCC Region, Rajkot Marine L.L.C delivers genuine PowerView® products with expert technical support. Our team ensures seamless integration for marine, industrial, and oilfield applications — helping clients achieve consistent performance and reliability.
