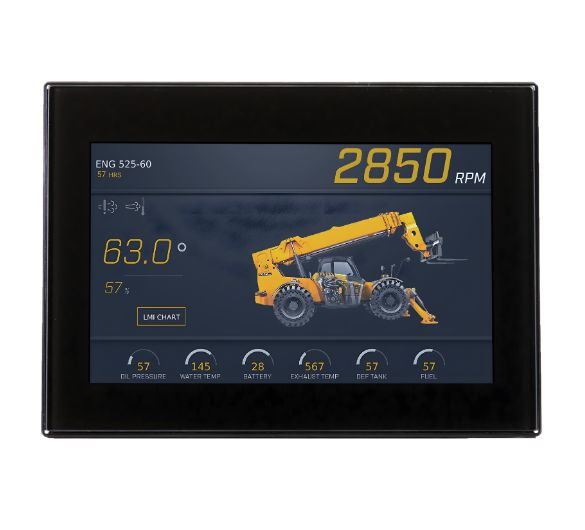

PowerView^® 700 Display – Rugged 7-Inch Touchscreen for Marine and Industrial Systems

PowerView® 700 Display from Enovation Controls is a high-performance, IP69K-rated operator interface designed for tough environments. Its 7-inch optically bonded glass touchscreen offers excellent visibility in direct sunlight, making it ideal for marine vessels, oil & gas machinery, and industrial control systems. Built for reliability and powered by advanced processing technology, the PowerView 700 ensures seamless monitoring and control across your most demanding applications.

8 GB Flash Memory

512 MB DDR3-SDRAM

1000 cd/m² Brightness

30VDC Max Voltage

Key Features Section

7-Inch Sunlight-Readable Screen: The optically bonded LCD with 1000 cd/m² brightness delivers crystal-clear visibility in any lighting condition, ideal for outdoor use.
Rugged IP69K Protection: Built to withstand water, dust, vibration, and extreme temperatures, making it suitable for harsh marine and off-highway environments.
High-Speed Processing: Equipped with a Renesas® R-Car M2 dual-core processor for smooth graphics, real-time data updates, and responsive performance.
Glove-Friendly Touchscreen: The projected capacitive (PCAP) touchscreen allows precise operation even while wearing work gloves.
Versatile Video and Data Inputs: Connect up to four cameras and monitor dual feeds simultaneously, improving situational awareness.
Flexible Connectivity: Supports dual CAN 2.0B, Ethernet, and USB, allowing easy integration with engine control systems and other monitoring devices
PowerVision Configuration Studio® Support: Easily create customized interfaces, automation logic, and system layouts without coding complexity.

Applications

Marine and Offshore Equipment: Ideal for vessel dashboards, engine rooms, and control consoles exposed to moisture and sunlight.
Oil & Gas Operations: Used for monitoring pumps, generators, and field control panels in rugged outdoor environments.
Industrial Machinery: Provides real-time process visualization for manufacturing, automation, and heavy-duty engines.
Construction and Mining Equipment: Durable enough for high-vibration environments, ensuring dependable performance on-site.
Power Generation Systems: Integrates easily with generators and engine panels for data logging, diagnostics, and performance management.

Technical Specifications

Engineered for precision. Built for the harshest environments on Earth.

Category	Details
Display	7-inch WVGA (800 × 480) TFT LCD, optically bonded glass, 1000 cd/m² brightness, anti-glare surface
Touch Panel	Projected capacitive (PCAP), glove-friendly touchscreen
Processor	Renesas® R-Car M2, Dual-Core Arm® Cortex®-A15 @ 1.5 GHz
Memory	512 MB DDR3-SDRAM, 8 GB Flash storage
Video Inputs	4 × NTSC/PAL camera inputs, supports dual-channel viewing
Connectivity	2 × CAN 2.0B (J1939 & proprietary), 1 × Ethernet 10/100 Base-T, 1 × USB 2.0 Host
Inputs	3 Analog (0–5V, 4–20mA, resistive), 5 Digital (active high), 1 Frequency input (0.5Hz–20kHz)
Outputs	1 Low-side switch (500 mA), 1 Frequency output (2Hz–3kHz)
Operating Voltage	6 – 30 VDC, reverse polarity protected
Power Consumption	12V: 0.76–1.07A / 24V: 0.49–0.66A (typical range)
Environmental Protection	IP66 and IP69K (front and back), vibration: 7.86 Grms, shock: ±50G
Operating Temperature	-40°C to +75°C (-40°F to +167°F)
Storage Temperature	-40°C to +75°C (-40°F to +167°F)
Compliance	SAE J1113, ISO 7637-2, ISO 11452, CISPR 25, EN 13309, CE (2014/30/EU)
Software Support	Compatible with PowerVision Configuration Studio® 4.0 and higher
Dimensions (W × H × D)	189 mm × 153 mm × 61 mm (approx.)

Why Choose Rajkot Marine L.L.C

As an authorized distributor of Enovation Controls in the UAE & GCC Region, Rajkot Marine L.L.C delivers genuine PowerView® products with expert technical support. Our team ensures seamless integration for marine, industrial, and oilfield applications — helping clients achieve consistent performance and reliability.
