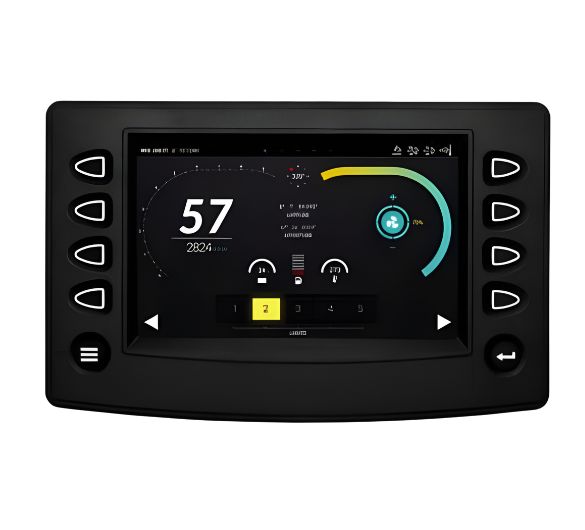

PowerView^® 780B Display – Advanced 7-Inch Marine Engine Monitoring System

PowerView® 780B Display from Enovation Controls is a next-generation 7-inch full-color screen designed for precision marine engine monitoring and industrial equipment control. Built for visibility in harsh environments, the PV780B combines a bonded sunlight-readable LCD, glove-friendly touchscreen, and high-speed processing to deliver real-time performance data with clarity and reliability. Ideal for use in marine vessels, oil & gas systems, and industrial machinery, this rugged display helps operators monitor and manage critical systems efficiently.

8 GB Flash Memory

512 MB DDR3-SDRAM

QNX® Realtime OS

36VDC Max Voltage

Key Features Section

7-inch Sunlight-Readable Display: A bonded LCD panel with 1000 cd/m² brightness ensures clear visibility in direct sunlight—ideal for open-deck or outdoor marine applications.
Powerful Dual-Core Processor: The Renesas® R-Car M2 1.5 GHz CPU enables fast screen transitions, smooth animations, and quick data refresh for real-time monitoring.
Glove-Friendly Capacitive Touch: Designed for operators in rugged environments, the optional touchscreen works flawlessly with gloves or wet hands.
Multiple Communication Interfaces: Includes dual CAN 2.0B, RS-485 (Modbus), USB, Ethernet, Wi-Fi, and Bluetooth for seamless system integration and diagnostics.
Customizable with PowerVision® Studio: Create intelligent user interfaces, configure alarms, and manage engine data through Enovation Controls’ PowerVision® software.
Rugged & Reliable Design: Built to IP66/IP67 standards, the PV780B resists vibration, water, dust, and temperature extremes from -40°C to +85°C.
Operator-Friendly Controls: Ten backlit tactile keys make it easy to navigate menus, trigger functions, or view diagnostics, even in low-light conditions.

Applications

Marine Vessels: Monitor propulsion engines, generators, fuel systems, and navigation parameters on commercial and defense boats.
Oil & Gas Equipment: Integrate the PV780B with compressors, pumps, and drilling rigs for efficient data visualization and safety monitoring.
Industrial Gensets & Pumps: Display key parameters such as load, voltage, and pressure to ensure optimal equipment uptime.
Construction & Heavy Equipment: Use the display as a central operator interface for diagnostics, control, and maintenance tracking.
Defense & Mobile Machinery: Suitable for tactical vehicles and field systems requiring fast boot-up, secure data handling, and rugged construction.

Technical Specifications

Engineered for precision. Built for the harshest environments on Earth.

Category	Details
Processor	Renesas® R-Car M2, Dual-Core Cortex®-A15, 1.5 GHz
Operating System	QNX® Real-Time OS
Memory	8 GB Flash, 512 MB DDR3 RAM
Display	7” TFT LCD, 800x480 (WVGA), 24-bit color, 1000 cd/m² brightness
Touchscreen	Projected capacitive, glove touch compatible (optional)
Keypad	10 soft keys with LED backlight
Connectivity	2x CAN 2.0B, RS-485 (Modbus), Ethernet (optional), USB, Wi-Fi, Bluetooth
Inputs/Outputs	3 analog, 5 digital, 1 frequency input, 1 frequency and 1 low-side output
Operating Voltage	6–36 VDC, reverse polarity protected
Environmental Rating	-40°C to +85°C
Dimensions	247.7mm (W) × 158.2mm (H) × 49.75mm (D)

Why Choose Rajkot Marine L.L.C

As an authorized distributor of Enovation Controls in the UAE & GCC Region, Rajkot Marine L.L.C delivers genuine PowerView® products with expert technical support. Our team ensures seamless integration for marine, industrial, and oilfield applications — helping clients achieve consistent performance and reliability.
