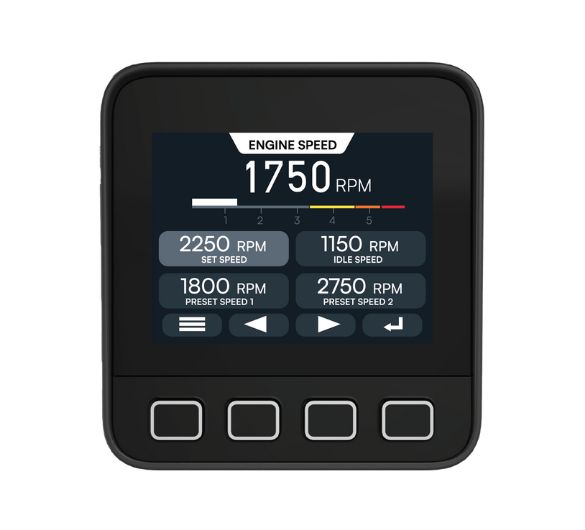

S35 Display^– Compact Engine and Equipment Monitoring Solution

The Enovation Controls S35 Display is a compact and reliable solution for real-time engine and equipment monitoring. Built as the modern successor to the PV101, it delivers advanced functionality in a smaller form factor. With its 3.5-inch sunlight-readable display, tactile silicon buttons, and rugged IP67-rated design, the S35 ensures dependable performance across industrial, off-highway, and marine applications.

160MHz Processor

320KB SRAM

800 NITS Brightness

36VDC Max Voltage

Key Features Section

Fully configurable display for engine and system monitoring
3.5-inch high-brightness color LCD (800 nits)
CAN J1939, CAN Open, and RS485 communication support
Durable tactile buttons with anti-glare screen surface
Rugged IP67-rated housing for harsh environments
Multi-language support and onboard data logging
Customizable interface with company logos and color themes

Applications

Marine engine monitoring and control
Industrial generators and pumps
Construction and off-highway equipment
Oil & gas field monitoring systems
OEM equipment requiring CAN or RS485 interface

Technical Specifications

Engineered for precision. Built for the harshest environments on Earth.

Category	Details
Display	3.5-inch color LCD, 320×240 QVGA resolution, 800 nits brightness
Processor	Arm® Cortex®-M33 microcontroller, 160 MHz, 32-bit
Operating System	Free RTOS
Memory	1 MB Flash, 320 KB SRAM
Inputs	2 analog (0–5V / 4–20mA), 1 frequency input (30Hz–10kHz)
Outputs	2 digital low-side outputs (500mA open drain)
Interfaces	CAN 2.0B (J1939/CANopen), RS485 half-duplex, USB-C (2.0 host)
Operating Voltage	6–36 VDC, reverse polarity protected
Environmental Protection	IP67, operating temperature -40°C to +85°C
Mounting	2” SAE hole with ring nut
Certifications	CE, RoHS, REACH, ISO 13766, ISO 14982
