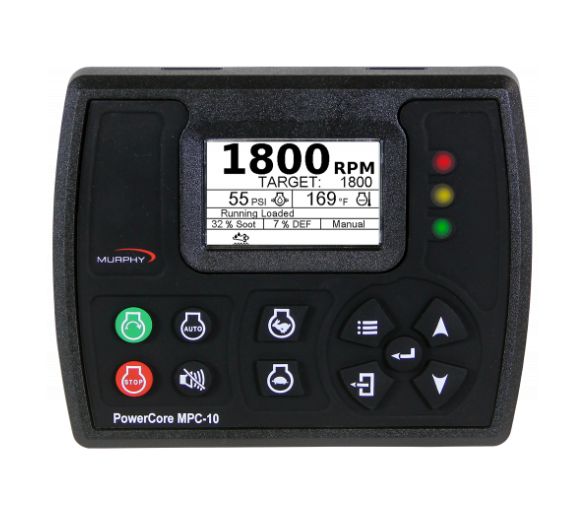

Key Features of the MPC-10 Engine Controller

• Wide Voltage Compatibility (8–32 VDC): Works on 12 V and 24 V systems with reverse-polarity and load-dump protection for robust electrical performance.
• Rugged Construction: Polycarbonate/ABS enclosure with IP67 front/back rating (panel gasket option for IP66) and wide temperature range for harsh environments.
• Flexible I/O: Configurable digital inputs, analog inputs (0–5V, 4–20mA, resistive), relay outputs, low/high-side FETs and a frequency input for RPM sensing.
• J1939 CAN & RS-485: Supports J1939 for electronic engines and RS-485 (Modbus RTU) for integration with SCADA/PLC systems.
• Frequency Input: Magnetic pickup and alternator frequency support from 30 Hz to 10 kHz for accurate speed measurement.
• Clear Operator Interface: 2.7" monochrome HR-TFT display and tactile silicone keypad for dependable local control and status indication.
• Programmable Machine States: Standard 22-state operating sequence that can be customised to match application start/stop and throttling needs.
• Power Hold-Up: Short power interruptions and cranking hold-up (up to ~50 ms) reduce resets and improve reliability on mobile equipment.
• USB Programming: USB 2.0 port for firmware updates and configuration via PC programming tool.
• Simple Panel Integration: Designed for panel mounting with standard Deutsch connectors and available harnesses for easy installation.

Applications

• Rental Gensets & Portable Power: Durable and simple operation for frequent deployments and varied operator teams.
• Industrial Generator Packages: Start/stop and protection for standby and prime power gensets in commercial or industrial sites.
• Engine Retrofits: Upgrade mechanical engines with monitoring and safety shutdowns without a full control system redesign.
• Pumps, Compressors & Skids: Reliable control and frequency sensing for pump packages, compressor drives and process equipment.
• Small OEM Control Panels: Compact footprint for integration into machinery, agricultural equipment and mobile units.
• Marine Auxiliary & Deck Equipment: Suitable where IP67 sealing, vibration tolerance and wide temperature range are required.
• Remote Field Equipment (Oil & Gas): Hard-working controller for pump skids, burners and remote power units in demanding field conditions.

Technical Specifications

Category	Details
Operator Controls	11 tactile silicone keys, raised keypad
LED Indicators	Green (mode), Yellow (warning), Red (shutdown)
Operating Voltage	8–32 VDC, reverse polarity & load-dump protected
Cranking Hold-Up	Maintains power during crank / 0 V up to 50 ms
Power Consumption	18W max (no FETs active) / 146W max (with FETs active)
Digital Inputs	5 configurable (active high, low or open)
Analog Inputs	3 configurable (0–5V, 4–20mA, resistive or digital ground)
Frequency Input	Magnetic Pickup & Alternator supported 30 Hz – 10 kHz
Relay Outputs	3 × Form-C relays (10A)
Low-Side FET Outputs	2 × 1A
High-Side FET Outputs	2 × 1A
Dedicated Alternator Excitation	+DC, 1A
CAN Communication	J1939
Serial Communication	RS-485 (Modbus RTU)
USB Port	USB 2.0B (programming)
Environmental Protection	IP67 front & back; IP66 panel seal with gasket
Operating Temperature	−40°C to +85°C
Storage Temperature	−40°F to +185°F
Vibration	7.86 Grms (5–2000 Hz)
Shock	±50G
Dimensions (W × H × D)	243.48 × 186.5 × 132.23 mm
Weight	Approx. 1.8 kg (4 lbs)
Enclosure Material	Polycarbonate / ABS
Mating Connectors	12-Pin Deutsch (Gray) 12-Pin Deutsch (Black) 12-Pin Deutsch (Green) 6-Pin Deutsch (USB)
