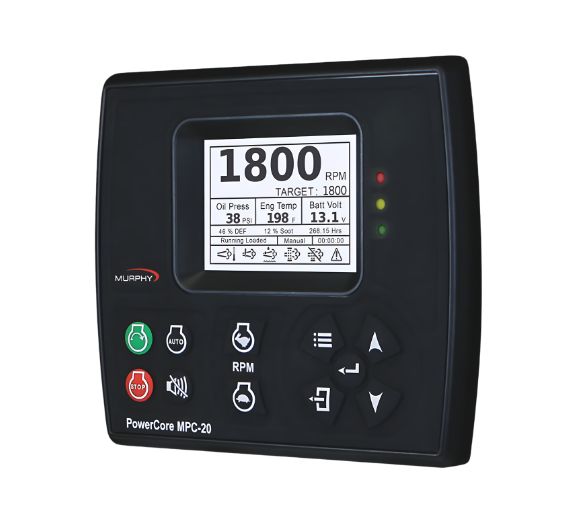

Key Features of the MPC-20 Engine Controller

• High-visibility 3.8-inch display: The monochrome LCD remains readable even under direct sunlight, helping operators easily view vital engine information in outdoor conditions.
• Flexible control options: Supports both automatic and manual start modes with configurable throttling, allowing smooth control across different engine setups.
• Advanced communication capability: J1939 CAN communication ensures seamless compatibility with modern electronic engines for improved diagnostics and data sharing.
• Versatile input support: Accepts resistive sensors, 0–5V, 4–20mA inputs, digital signals, and frequency pickups, making it adaptable to a wide range of sensors and applications.
• Rugged and durable design: Built with IP67 environmental protection and tested for shock and vibration, ensuring reliable performance in harsh industrial environments.
• Comprehensive output options: Includes high-side, low-side, 5V, analog, and relay outputs to support various automated engine control requirements.
• Simple configuration tools: USB and RS-485 (MODBUS RTU) compatibility makes setup, calibration, and troubleshooting fast and intuitive.
• Clear operational status indicators: Built-in LEDs for shutdown, warnings, and auto mode allow quick identification of engine conditions without navigating menus.

Applications of the MPC-20 Engine Controller

• Pump and irrigation systems: Ideal for diesel and gas-powered pump sets requiring reliable automation, protection, and monitoring.
• Industrial machinery: Supports engines used in compressors, generators, blowers, and industrial equipment that operate in demanding environments.
• Agricultural equipment: Suitable for field engines and farm machinery where dependable start/stop control and real-time data are essential.
• Mechanical and electronic engines: Works effectively across older mechanical engines and modern electronic engines thanks to its flexible I/O and J1939 communication.
• Mobile equipment: Useful in mobile industrial units, construction machinery, and portable engine-driven systems.
• Remote or harsh site operations: Designed for locations with heat, dust, vibration, and heavy usage—maintaining stable performance in tough field conditions.

MPC-20 Technical Specifications

Category	Details
Screen Size	3.8 inches
Type	Monochrome LCD with white backlight
Resolution	320 × 240 pixels
Hardware
Keypad	11 tactile feedback buttons
Status LEDs	Red (shutdown), Amber (warning), Green (auto mode)
Connectors	Delphi SICMA, 90-position
Communication
CAN	1 × CAN 2.0B, J1939, 250 kbps
Serial	RS-485 (MODBUS RTU)
USB	USB port for programming
Electrical
Operating Voltage	8–32 VDC with load dump and reverse polarity protection
Power Consumption (max)	18 W (without high-sides), 146 W (with high-sides)
Inputs
Analog Inputs	8 configurable (resistive, 0–5V, 4–20 mA, or digital ground)
Digital Inputs	6 configurable (battery or ground)
Frequency Input	1 input, 2 Hz–10 kHz, 3.6–120 VAC
Outputs
Low-Side Outputs	2 outputs, 1A max
High-Side Outputs	2 outputs, 2A max
5V Outputs	2 outputs, 200 mA max
Analog Output	1 output, 0–5 VDC
Relay Outputs	6 × Form C relays, 10A max
Environmental
Operating Temperature	−40°C to +85°C (−40°F to +185°F)
Storage Temperature	−40°C to +85°C (−40°F to +185°F)
Ingress Protection	IP67 (controller), IP66 (panel mount with gasket)
Shock Rating	±50G
Vibration Rating	7.86 Grms (5–2000 Hz), 3 axes
Dimensions
Width	208.7 mm (8.2 in)
Height	189.7 mm (7.5 in)
Depth	57.5 mm (2.3 in)

Why Choose Rajkot Marine L.L.C

As an authorized distributor of Enovation Controls in the UAE & GCC Region, Rajkot Marine L.L.C delivers genuine PowerView® products with expert technical support. Our team ensures seamless integration for marine, industrial, and oilfield applications — helping clients achieve consistent performance and reliability.

Authorized Distributor

We provide genuine Enovation Controls products backed by manufacturer warranties and support.

Technical Expertise

Our engineers assist with complete system configuration, installation, and troubleshooting.

Regional Presence

Serving UAE & GCC with fast delivery, regional service, and technical guidance.

Reliable Solutions

All solutions are designed to withstand demanding marine and industrial environments.
